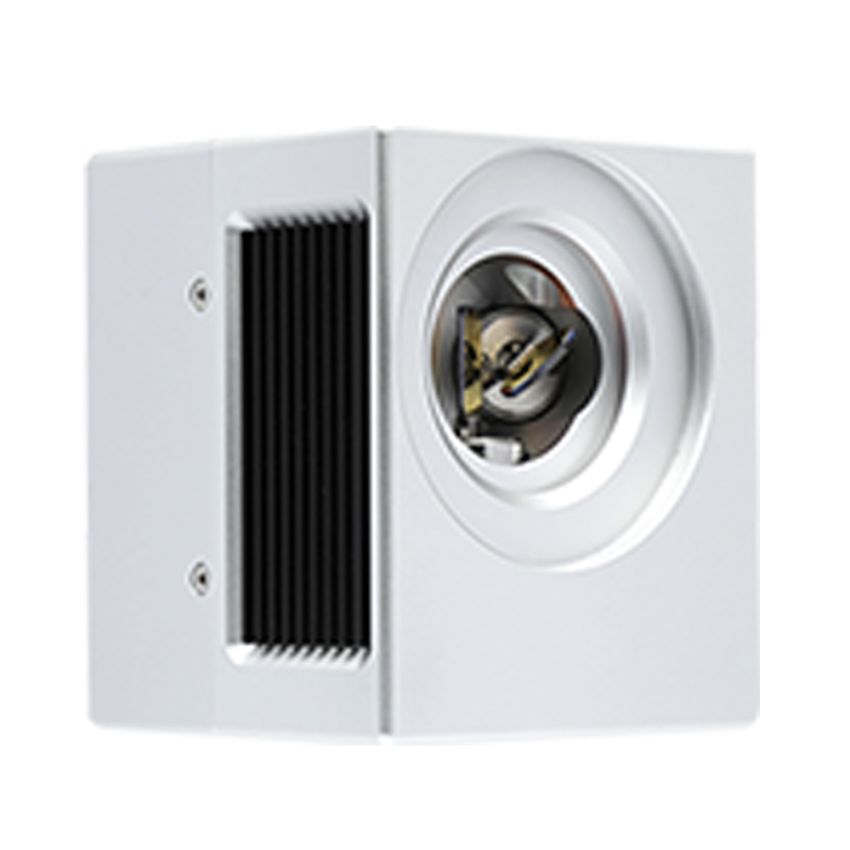

CYCJET SG7210 high-speed galvanometer

Add to Wish List

The SG7210 galvanometer has good operational stability, high positioning accuracy, fast marking speed, and strong anti-interference ability.

The SG7210 galvanometer boasts excellent operational stability, high positioning accuracy, fast marking speed, and strong anti-interference capabilities. Its overall performance is comparable to the Scanlab cube10 galvanometer from Germany. Specific characteristics include:

■ Employs imported photoelectric sensors from the USA.

■ Differential photoelectric sensors detect the motor rotor position, offering excellent linearity, minimal drift, and high resolution and repeatability.

■ Load design for the 10mm lens, with high motor assembly precision, a rational structure, and low static friction coefficient and zero-position offset, ensuring excellent dynamic characteristics of the system.

■ The driver features position and speed lead detection, significantly improving the overall system's dynamic response performance and scanning speed.

■ Designed with overload, overcurrent, and reverse connection protection, enhancing system reliability.

■ The entire system employs electromagnetic compatibility optimization design, resulting in a high signal-to-noise ratio and strong anti-interference capabilities.

■ Solves common problems such as galvanometer motor temperature drift, signal interference, and zero-position drift.

In stock
SKU
SG7210
Laser accessories

Guarantee safe & secure checkout

Performance specifications

speed
Marking speed 8000mm/s
Positioning speed 15000mm/s
Write speed  559cps
Step response time (1% of total travel) 260us
Step response time (10% of total travel) 830us
Tracking error ≤144us
Accuracy and error
linearity 99.9%
Repeatability <8μRad.
Gain error <5mRad.
Zero-point offset (batch origin error) <5mRad.
Long-duration drift (8 hours of continuous operation) <0.5mRad.
Scale drift < 40PPM/℃
Zero Drift <15μRad./℃
Lens damage threshold
Si matrix 10J/cm^2
Mirror reflection wavelength 10600nm / 1064nm / 355nm
Power and signal
Input voltage ±15VDC
Rated current 2A
Interface Protocol XY2-100
Mechanical scanning angle ±11°
Operating current, temperature, dimensions
Operating temperature 0℃℃--45℃
Storage temperature -10℃--60℃
Laser input aperture 10mm
Galvanometer dimensions (length × width × height) 114x96.5x93.7mm
Galvanometer weight ≈1.8Kg

Note: The above parameters were obtained after a 30-minute warm-up test.
