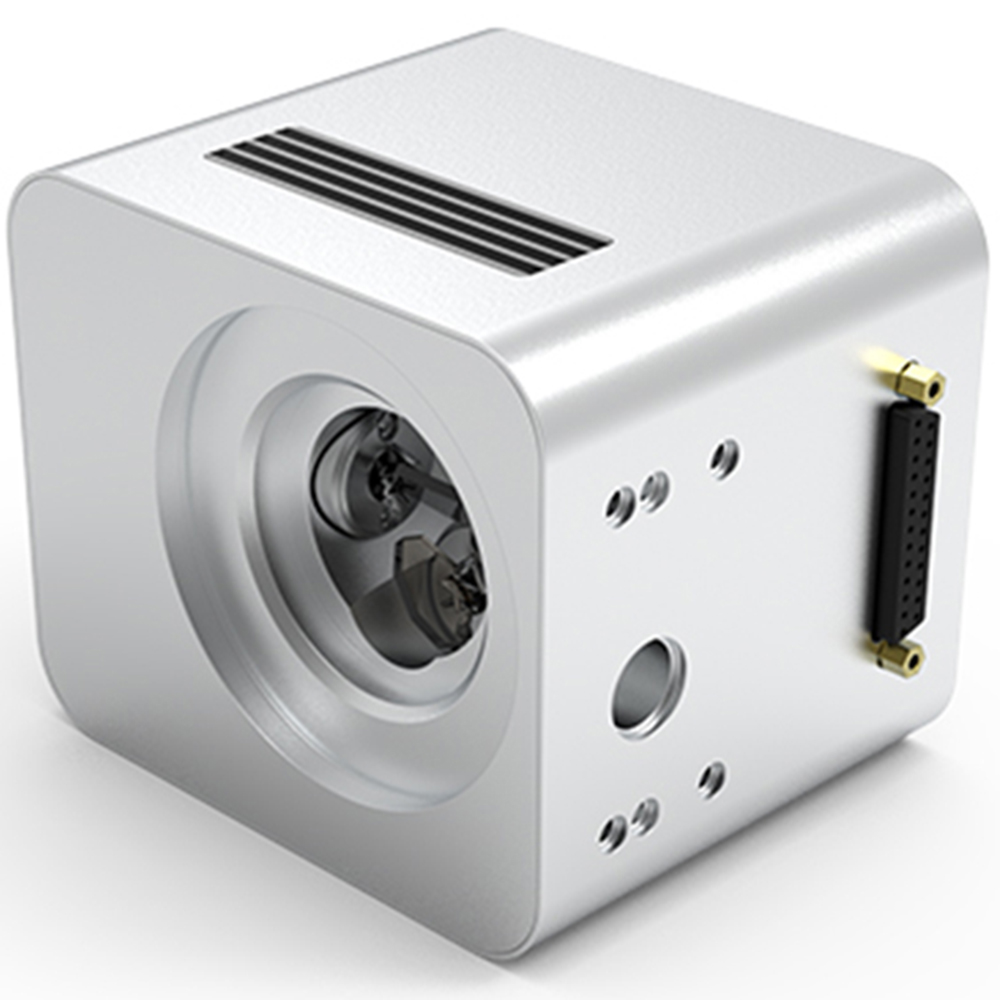

CYCJET M103 Two-Dimensional Laser Scanning Galvanometer

Add to Wish List

1. Employs a self-developed high-performance scanning motor and industry-leading photoelectric sensing technology;

2. Uses a differential photoelectric sensor, offering excellent linearity, low drift, and high resolution and repeatability.

3. Features overload, overcurrent, and reverse connection protection for enhanced reliability;

4. Employs electromagnetic compatibility optimized design, resulting in a high signal-to-noise ratio and strong anti-interference capabilities;

5. Utilizes φ10mm lenses covering multiple wavelength ranges to meet diverse industry needs;

6. Compact size, lightweight design.

In stock
SKU
M103EY
Laser accessories

Guarantee safe & secure checkout

Dynamic performance
Light aperture φ10 mm
Tracking error < 0.2 ms
Marking speed 3.0 m/s
Positioning speed 12.0 m/s
Write speed 400 cps
1% full-stroke step response time 0.3 ms
10% full-stroke step response time 0.8 ms
General parameters
power supply ±15V DC, max 2A
Communication Protocol XY2-100
IP Class IP65
Operating temperature 0℃   -   +45℃
Storage temperature -10℃  -  +60℃

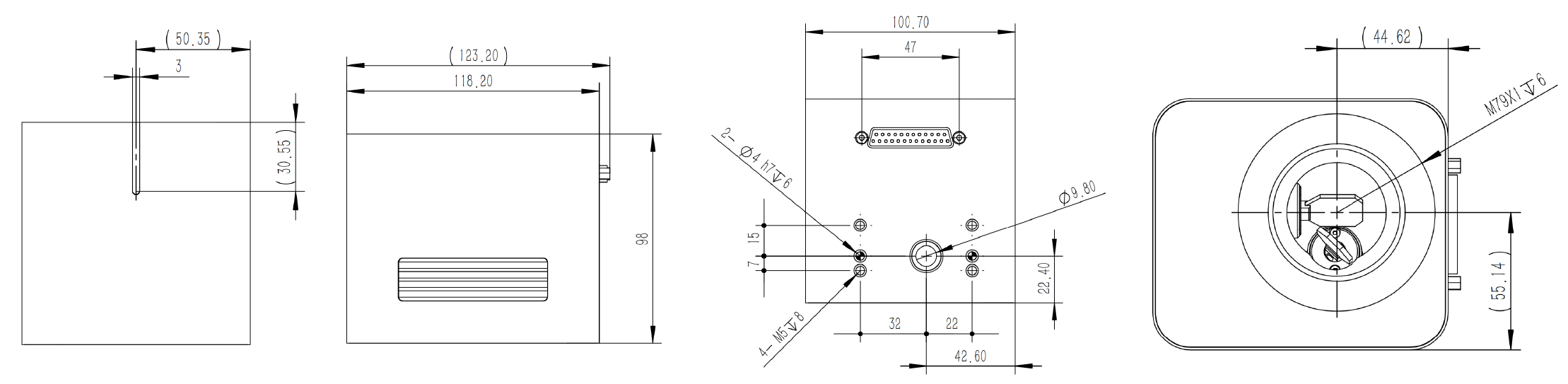

External dimensions 118.2mm X 100.7mm X 98mm
weight < 1.2 kg
Accuracy and stability
Repeatability (RMS) < 8 μ rad
resolution 16 bit
Nonlinearity < 0.9 mrad/44°
Zero Drift < 30 μ rad/k
Gain drift < 80 ppm/K
8-hour long drift < 0.3 mrad
Optical performance
Scanning angle ±0.35 rad
Gain error 5 mrad
Zero point error 5 mrad
