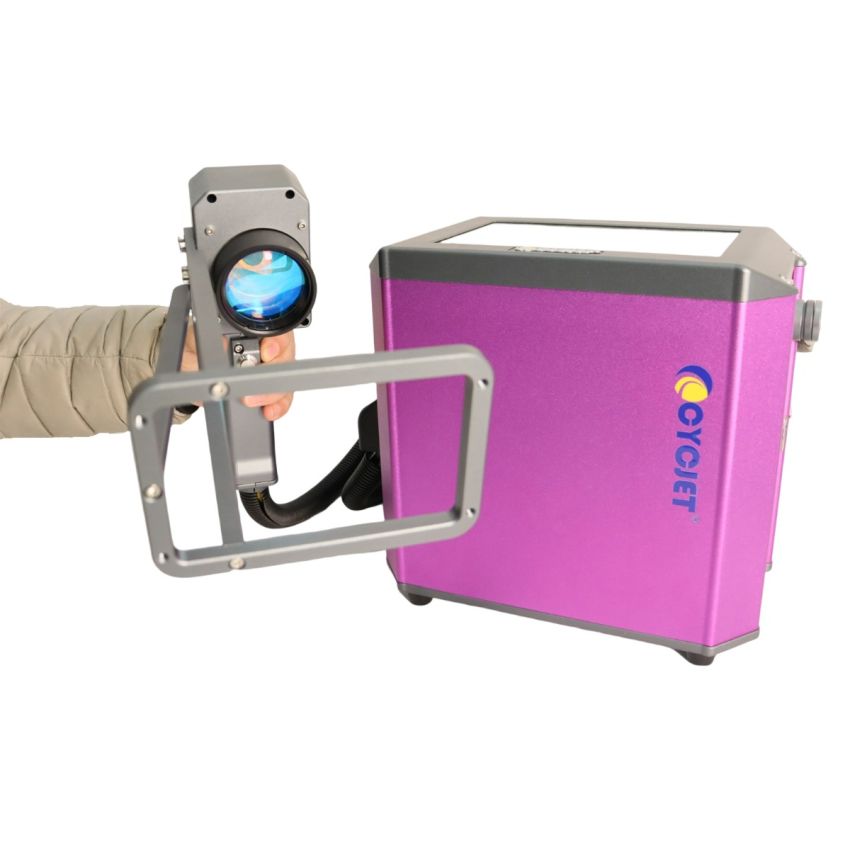

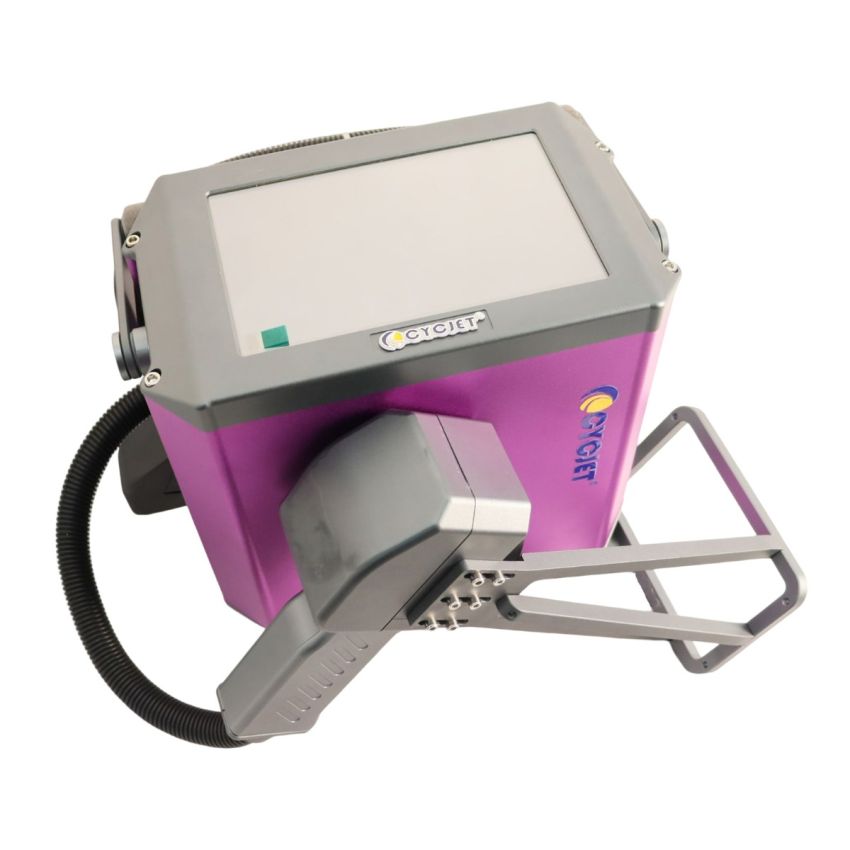

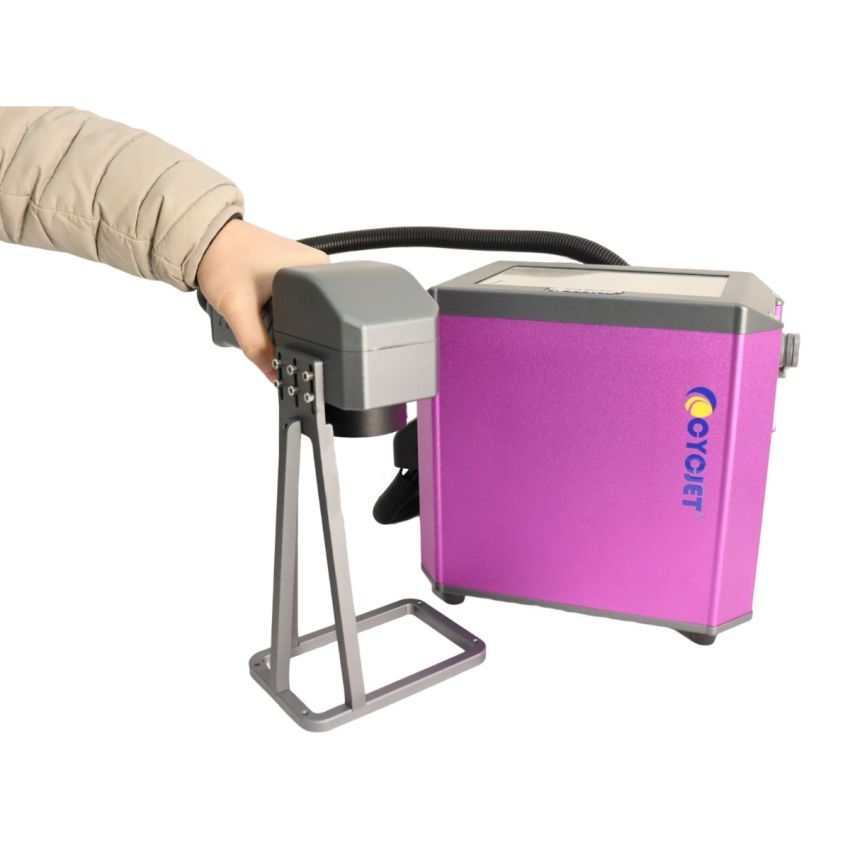

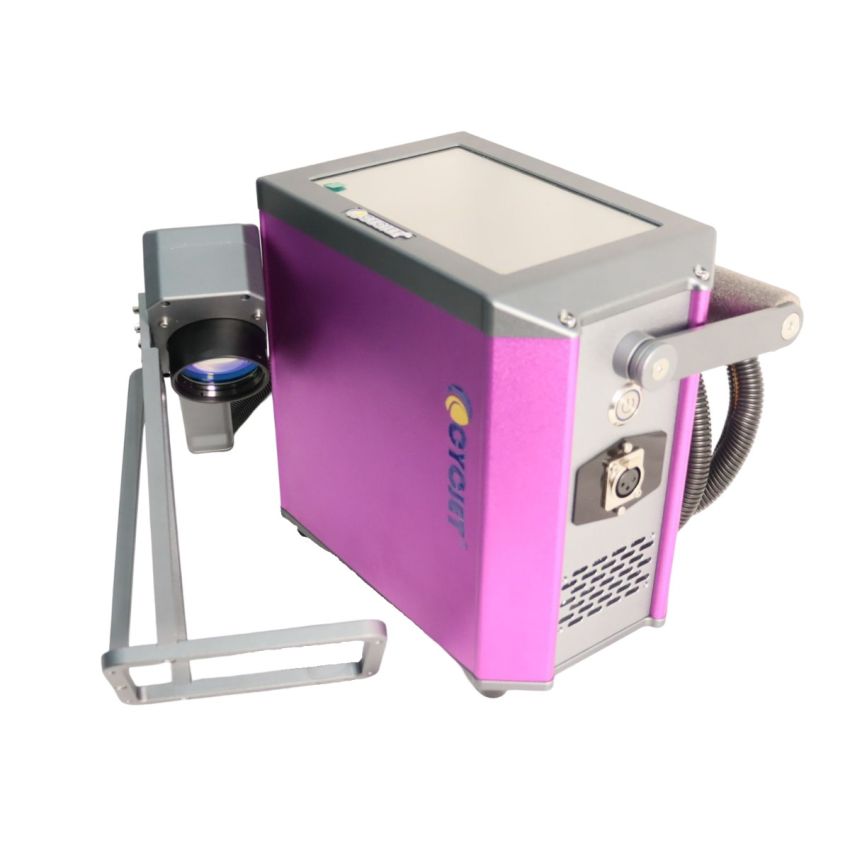

CYCJET Handheld Laser Marker M20

Add to Wish List
Special Price $3,500.00 Regular Price $4,000.00

CYCJET Handheld Laser Marker is a specially designed equipment for heavy products that can not be removed by human hands or a conveyor belt. Portable laser marking materials, fine workmanship, reliable quality, and favorable price. The handheld laser marking machine can print different information on the surface, such as digits, logos, Barcodes, QR Codes, Serial No, Dates, and Times. It is widely used in the tire industry, tire manufacturers or distributors, can track the tire information through a QR Code or DM Code. For example manufacture date, distributor region, tire model no and size, etc. It can supply more options to the management to control their system or channel. And also suitable for metal parts, plastic, composite boards, electronic components, electrical products, and other high-end products of precision, and fine logo printing.

In stock
SKU
M20
Estimated Delivery:
12 - 24 Dec, 2024
Free Shipping & Returns:
On all orders over $0

Guarantee safe & secure checkout

CYCJET Handheld Laser Marker is a specially designed equipment for heavy products that can not be removed by human hands or a conveyor belt. Portable laser marking materials, fine workmanship, reliable quality, and favorable price. The handheld laser marking machine can print different information on the surface, such as digits, logos, Barcodes, QR Codes, Serial No, Dates, and Times. It is widely used in the tire industry, tire manufacturers or distributors, can track the tire information through a QR Code or DM Code. For example manufacture date, distributor region, tire model no and size, etc. It can supply more options to the management to control their system or channel. And also suitable for metal parts, plastic, composite boards, electronic components, electrical products, and other high-end products of precision, and fine logo printing.

More Infromation

Item Mode: M20

Laser Feature

laser Type Fiber
Output Power ≥20W/30W
Laser Beam ≤1.4
Frequency 27-60 kHz
Wave Length 1064nm
Power Stability <3%
Running Cost Zero running cost, Zero maintenance cost

Working Feature

Marking Size 70x70mm/110x110mm (Optional)
Marking Depth ≤1mm(depend on marking time & power)
Marking Speed ≤10000mm/s
Accuracy 0.002
Line Width 0.1mm
Min Font Size 0.15mm

Design Feature

Battery Life Continuous working 12-16 hours
Cooling Way Air Cooling
Power 500W  /  100-240V  /  50/60Hz
Others System Linux Operation System support multi language menu
Contents Number, Letter, Logo, Barcode, QR Code, DataMatrix Code, Logo,
Special Marks
Dimension Control Cabinety: 270x155x245 mm
Hand Holdery: 230x120x230 mm
Weight Whole Machine: 8.25kg, Hand Holder: 1.25kg

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
CYCJETCYCJET

CYCJET

SHANGHAI YUCHANG INDUSTRIAL CO., LTD, referred to as CYCJET ---Professional handheld inkjet printer and portable marking solution manufacturer located at Shanghai, China. As a high-tech enterprise, CYCJET series products have been exported to more than 90 countries and regions, such as United States, Britain, France, Germany, Malaysia , Singapore, Indonesia, United Arab Emirates, Saudi Arabia, Brazil, etc... Received highly commended by domestic and global customers.
