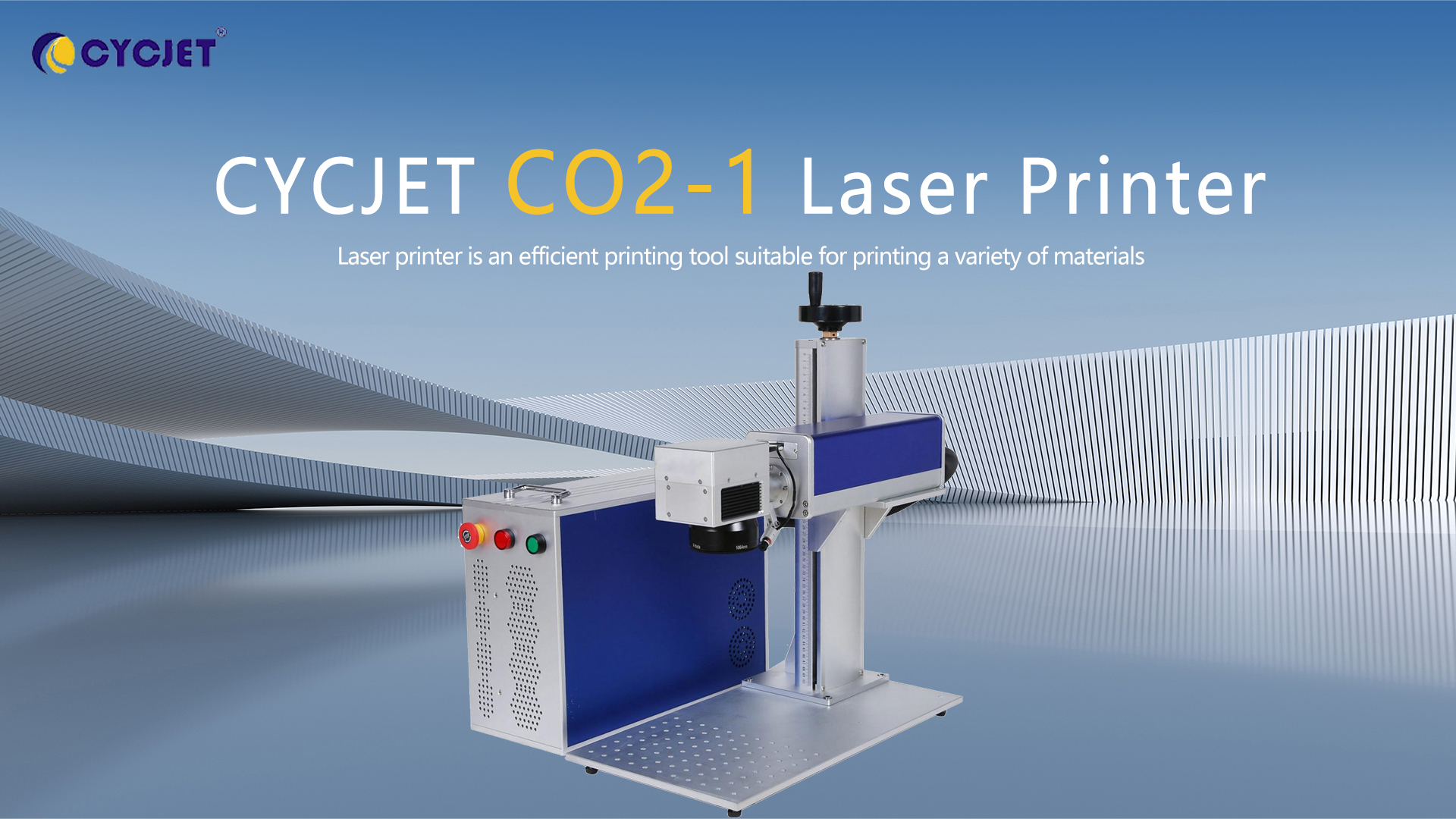

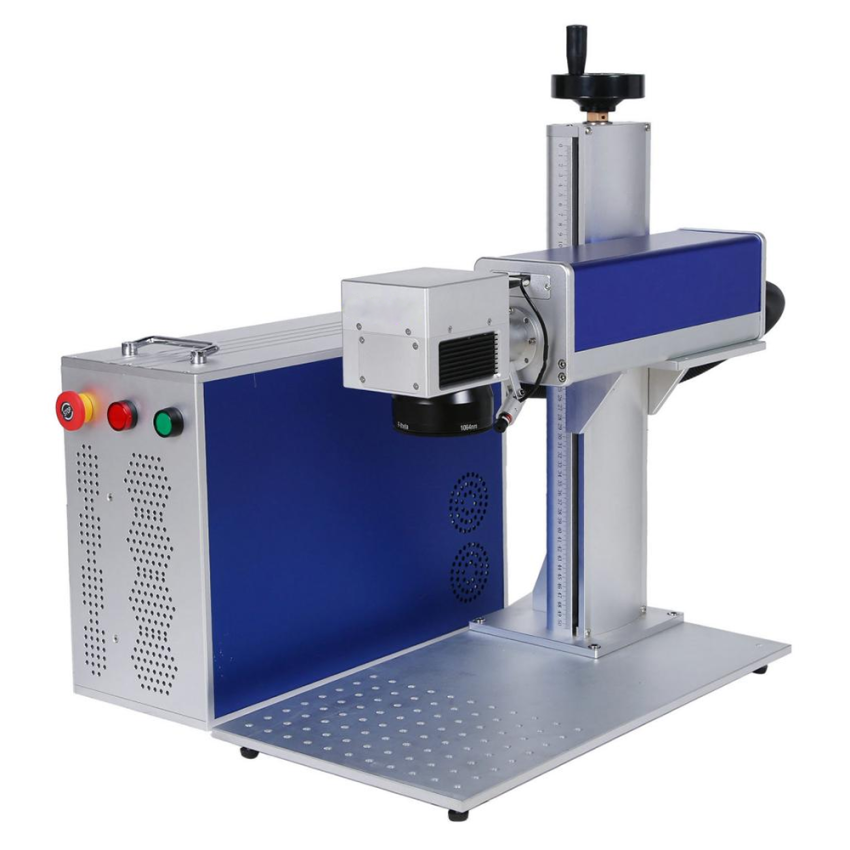

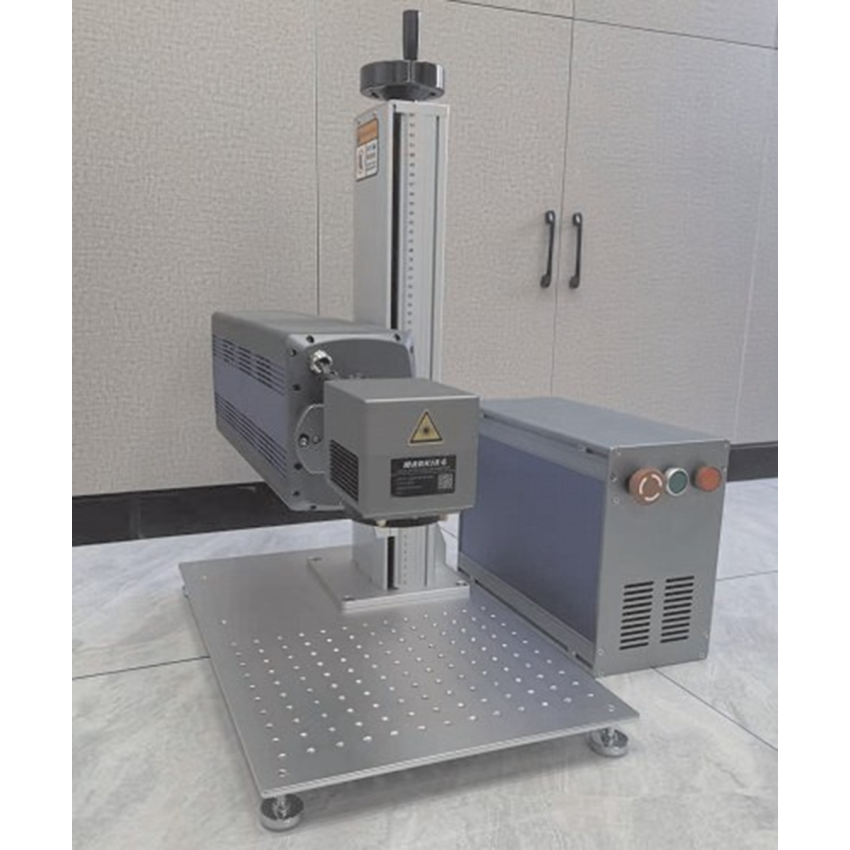

CYCJET CO2-1 Industrial CO2 Laser Marker - High-Speed Metal/Plastic Coding

Add to Wish List

CO2 laser marking machine split
Applicable to non-metallic materials, and some non-metallic materials including glass, wood, ABS, etc. Mainly used in fields with high requirements for smoothness and fineness, such as electronic products, wood furniture, pharmaceutical packaging, etc.

Product features
1. Ultra-high configuration: optional domestic or imported lasers and high-speed galvanometers.
2. No maintenance required: The laser does not require maintenance, nor does it need to adjust or clean the lens. Its average working time can reach 20,000-30,000 hours.
3. No consumables required: No consumables are required, non-toxic, no environmental pollution, and highly environmentally friendly.
4. Red light positioning: The red light positioning system is adopted, which is convenient for positioning and has high positioning accuracy.
5. Extended functions: Additional functions can be extended. Such as circular marking, X Y electric workbench, automatic feeding flight marking, etc.

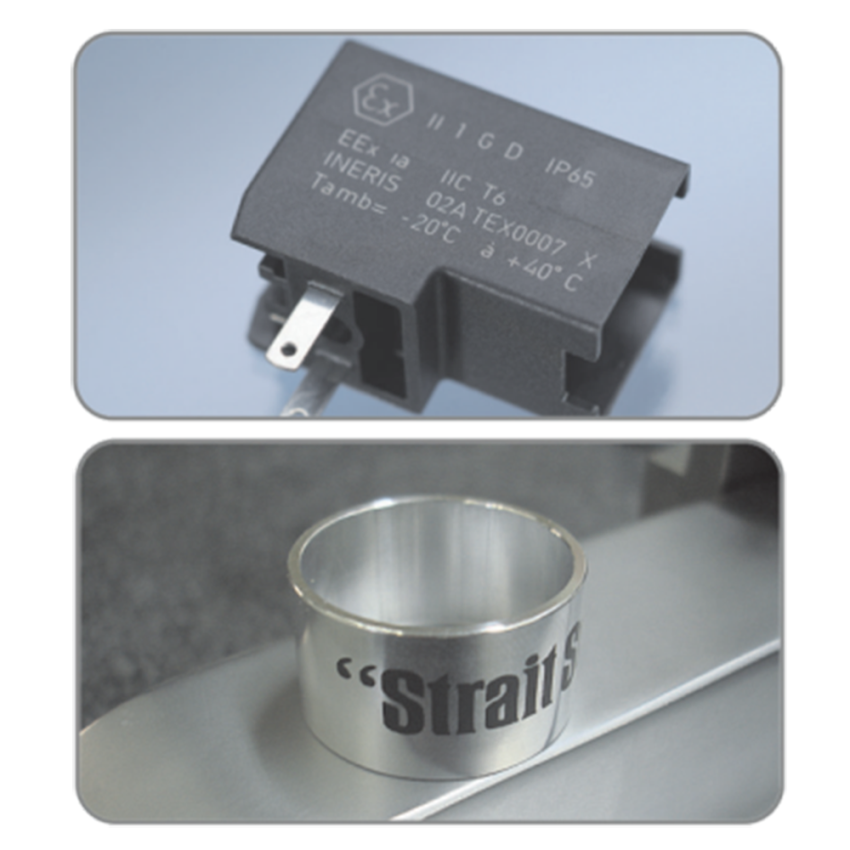

6. Depth marking: High-speed scanning galvanometer can mark the workpiece white, black, and deep.
7. Computer programming: Printing is automatic, printing English, numbers, Chinese characters, graphics, and the printing content can be changed at will.
8. Multiple fonts: common one-dimensional barcode and DatamatrixPDF417 two-dimensional barcode

Notify me when this product is available:

Out of stock
SKU
CO2-1

Guarantee safe & secure checkout

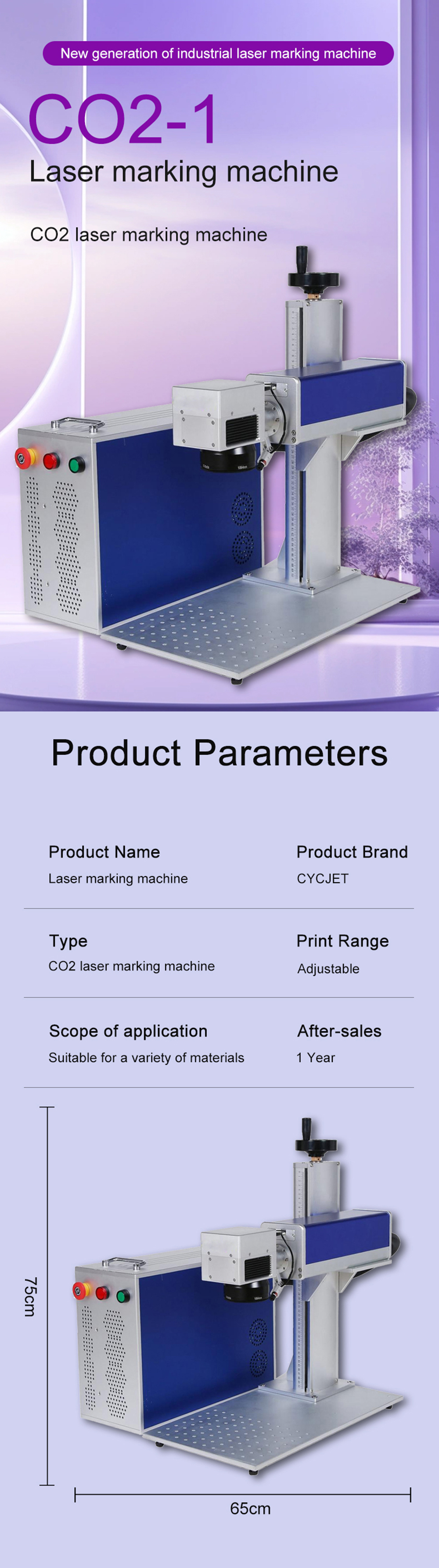

Parameter Specification
Laser Power 20W / 30W / 60W / 100W
Laser Wavelength 10.6μm
Beam Quality (M²) <2
Laser Type Pulsed or Continuous
Operating Lifetime >100,000 hours
Cooling System Built-in air cooling
Power Supply 220V, 50Hz AC
Power Consumption

700W
Operating Temperature -20°C to 45°C
Relative Humidity ≤80%
Dimensions (L×W×H) 650mm × 550mm × 750mm
Weight

<30kg (integrated cabinet)
Marking Depth ≤0.5mm (material-dependent)
Marking Speed ≤7000mm/s
Marking Area

Standard: 110×110mmCustom: 150×150mm, 300×300mm
Minimum Character Size 0.15mm
Minimum Line Width 0.012mm
Repeatability Accuracy ±0.002mm
Marking Content Numbers, Chinese characters, English letters,patterns, QR codes, barcodes, etc.

Company Profile

Shanghai YUCHANG INDUSTRIAL Co., Ltd, referred to as CYCJET ---Professional handheld inkjet printer and portable marking solution manufacturer located at Shanghai, China. As a high-tech enterprise, CYCJET series products have been exported to more than 90 countries and regions, such as United States, Britain, France, Germany, Malaysia, Singapore, Indonesia, United Arab Emirates, Saudi Arabia, Brazil, etc...Received highly commended by domestic and foreign customers.

CYCJET relies on head office which has experts with more than ten years experience and high innovation spirits to ensuring the product's quality & reliability and the company's future development. On the base of enlarging product's scope, we do hope our coding system can meet the requirements of the customers all over the world, also constantly devotes to offering comprehensive high-end products of Industrial Ink-Jet & marking solution, smart & portable coding system, such latest type "A" series handheld inkjet printers, "B" series high-speed industrial inkjet printers, "C" series portable inkjet printers, and "L" series higher configuration fly laser marking machines.

CYCJET people consistently adhering to the concept of "Smart Thinking Smart Printing", with professional technology, top quality, personalized service, preferential prices to meet the needs of different users, and with new and old friends to work together, common development, sharing a win-win, experience efficient, smart and portable marking solution!

FAQ
1. What material could CYCJET inkjet print on?
CYCJET Inkjet can print on many different material like paper, plastic, metal,
fabric, cloth, concrete, wood, glass, ceremic, etc. Different ink supply to meet different material.
2. What information can CYCJET Inkjet print? Can it print logo or qrcode?
CYCJET high resolution inkjet printer can print not only numbers, letters, but also brand logo, signals, barcode, qrcode, as well as real date and time, serial number, group number, etc. Yes, it can print solid logo and qrcode, in high resolution.
3. What is the font size?
CYCJET industrial inkjet printer with single printhead can print max 71mm height, and min font height is 2mm. CYCJET can assemble two or more printheads to get larger font size.
4. How many lines can print in total?
CYCJET portable inkjet printer can print multi-lines within the max printing height, jusy more lines printing, the font size will be smaller.
5. How many printing information can storage into the printer?
CYCJET piezo inkjet printer can storage more than 1000pcs printing information.
6. How can I lock the inkjet printing machine to escape wrong operation by workers?
You can set password, then the worker can only do the printing job, they can not change the machine settings an more.
7. What is the warranty?
CYCJET provides one year warranty to the inkjet printing machine. Any quality problms during the
warranty, CYCJET will send spare parts freely. If the ink jet printer needs to repair, CYCJET will bear all the shipping fee also.
8. What shall I do if I can not use the CYCJET ink jet printing machine properly?
There is USB sticker with the machine and inside there is operation video to show you how to use the machine step by step. Also if you have any further problems, we can have online video chatting to give instructions.
9. What is the ink color avaiable?
CYCJET has black, white, blue, green, yellow, red ink.
10. Can I use different color of ink with one hand jet printer?
No. As different color of ink has different chemical components. If you mix them, they will have chemical eastion then damage the printhead. Even you flush the ink system before change ink, you can not flush it fully.
11. Can I find alternative ink locally?
CYCJET does not suggest you to use alternative ink. As the ink is special for the printhead. With the original ink, the ink jet printer will be more stable. Also, if you want to find locally, we can provide you the ink info, but please use ink in high quality.
